Current State of Surgical Simulation Training in Otolaryngology: Systematic Review of Simulation Training Models

Archives of Otorhinolaryngology-Head & Neck Surgery. 2019;3(1):5
DOI: 10.24983/scitemed.aohns.2019.00109
Article Type: Review Article

Abstract

Objective: To present an expansive list of otolaryngology-specific surgical simulation training models as described in Otolaryngology literature and to evaluate recent advances in simulation training in Otolaryngology.
Methods: An a prior qualitative systematic review protocol was designed. Ovid/Medline, PubMed, Embase, Web of Science, and Cochrane databases were searched from their inception with cross-referenced subject headings of otolaryngology simulation training and associated terms. Information from each study was systematically extracted and summary analysis was conducted.
Results: A total of 178 records were systematically reviewed to obtain 104 unique records of surgical simulation models (34 airway/laryngeal, 16 oncology/facial plastics/reconstructive, 17 rhinology, 37 otology). Of the records included, only 8 simulation models were reported in or before 2004, 20 reported between 2005 and 2009, 34 reported between 2010 and 2014, and 42 described in or after 2015. There were 50 synthetic, 21 computer-based, 19 animal cadaver, 6 human cadaver, and 8 hybrid models. Synthetic simulators were the most common type of simulators. A total of 18 of 50 synthetic simulators were formulated using 3D-printing.
Conclusions: Current literature shows the availability of several otolaryngology-specific simulation models that have proven beneficial in otolaryngologic surgical training. Recent advancements in manufacturing and computing technologies are contributing to a paradigm shift in surgical simulation education. With the availability of these options, there exists the potential to establish a well-structured and standardized approach to simulation activities across otolaryngology training programs.

Keywords

  • Otolaryngology simulation models; otolaryngology simulation training; surgical simulation training

Introduction

Despite the changing landscape of surgical education with work hour restrictions and decreased independence of trainees in clinical activities [1], most training programs uphold a traditional, dogmatic approach in training surgical residents that is based on a hierarchical, apprenticeship model. This model often presents a time-intensive learning curve that leaves trainees, who are often first responders, with limited knowledge, skills, and confidence to competently deal with clinical and surgical scenarios of varying complexity [2].

Given that surgical simulation training (SST) engages the two most important tenets of adult learning by permitting moderated practical experience in the setting of guided reflection, it holds great potential in the training of otolaryngologists [3]. Although surgical simulation activities can be resource intensive [4,5], the availability of an arena for deliberate practice in a risk-free, low stress environment is an effective way to acquire skills specific to the practice of a surgical subspecialty [6].

Simulation models remain a keystone in the design of high-yield simulation activities by providing apparatus for the acquisition of surgical skills which can then be transferred to patient care [7].  Simulation models fulfill the role of physical vessels that afford trainees an opportunity to hone their psychomotor and decision-making skills without the loom of patient risk [2].

With the exponential advancement of computing and manufacturing technologies, several simulation models and platforms have recently been developed and deployed in the training of surgical residents. On a broad scale, these simulation models can be categorized into synthetic bench models, computer-based models (virtual reality or web-based), animal models (tissue or live), and human cadaveric models [8], while a combination of any of these constitutes a hybrid model.

In this study, we aim to provide a systematically reviewed list of otolaryngology simulators that are documented in Otolaryngology literature and discuss recent updates in simulation training in the field of otolaryngology.

Methods

Study Selection
With the assistance of an information specialist, an a priori research protocol was designed based on the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) methodology [9]. Subsequently, a sensitive systematic review was performed to obtain as many articles from five databases namely Ovid/Medline, PubMed, Embase, Web of Science, and Cochrane. The databases were searched from their inception through July 18th, 2018. Two investigators (M.A. and M.L.) conducted the search and reviewed selected articles. Subject headings for the search included otolaryngology, otology, airway, laryngeal, rhinology, reconstructive, facial plastics, and head and neck oncology cross-referenced with the terms simulation, simulation training, and simulation models. Bibliographies were manually searched to identify studies that met inclusion criteria. Inter-investigator discordances in the review process were resolved by consensus.

Eligibility Criteria
For the systematic review, all articles in the English literature reporting on simulation training in otolaryngology were eligible for inclusion. After elimination of duplicates, all articles were subjected to a title and abstract screen. Articles were excluded if they (1) did not report adequate data regarding the simulation model/platform, (2) did not report on otolaryngology-specific simulation, (3) were not unique (i.e., reporting simulation models already described at an earlier date in other included records), (4) were review articles not describing original simulation models and/or (5) were not reported in English language. Full texts of the remaining articles were then comprehensively reviewed. A flow chart of the systematic review design with complete numeric details is provided in Figure 1.



Figure 1. Systematic review flowchart based on the PRISMA methodology. PRISMA, preferred reporting items for systematic reviews and meta-analyses.



Data Extraction and Statistical Analysis
All data was systematically aggregated using Microsoft Excel software, version 16.12 (Microsoft). Extracted data end points included: author names, year of publication, type of simulation model, brief description of the simulation model, and key training objective of the simulation model. Data was analyzed using SPSS software, version 25 (IBM). Descriptive statistics were applied in the analysis of all studies that met inclusion criteria.

Results

Overall Characteristics
The systematic review selection process and its results are captured in Figure 1. The aforementioned search strategy was applied to Ovid/Medline, PubMed, Embase, Web of Science, and Cochrane databases which yielded an output of 178 records. After elimination of duplicates, a total of 165 articles remained, which were subsequently subjected to title and abstract screening. The remaining 112 articles were subjected to comprehensive, full-text analysis. Ultimately 83 articles met final inclusion criteria. A manual bibliography screen of included articles yielded an additional 20 articles. A total of 103 records were deemed eligible for inclusion. A single record [10] was utilized as a double entry in two separate categories, yielding a grand total of 104 described otolaryngologic surgical simulation models.  Of the records included, only 8 simulation models were reported in or before the year 2004, 20 were reported between 2005 and 2009, 34 models were reported between 2010 and 2014, and 42 models were described in or after the year 2015 (Figure 2). There were a total of 50 synthetic, 21 computer-based, 19 animal cadaver, 6 human cadaver, and 8 hybrid models described. Synthetic simulators were the most common type of simulators in all categories with the exception of oncology/facial plastics/reconstructive category, where animal cadaver models were more common. Otology had the highest number (n = 37) of reported simulation models while oncology/facial plastics/reconstruction had the lowest number (n = 16). A total of 18 of 50 synthetic simulators were purely formulated using 3D-printing techniques (36%), with only 5 such models described prior to 2015 (27.78%). A majority of 3D-printed synthetic simulators were described in or after the year 2015. Hybrid models most often constituted animal cadaver models combined with synthetic models (75%), with the remainder comprised of synthetic models combined with computer-based platforms (25%).



Figure 2. Number of simulation models described in literature over time.



Airway/Laryngeal Surgical Simulation Models
A total of 34 airway and laryngeal surgical simulation models were identified (Table 1). These models consisted of 18 synthetic, 4 computer-based, 8 animal cadaver, 4 human cadaver, and 4 hybrid models. Of these 34 models, 15 models were aimed at establishing emergency surgical airways. Only 6 articles captured in our review reported on pediatric airway/laryngeal simulation models. Of all the airway/laryngeal surgical simulators, 9 models were manufactured by 3D printing (26.47%).





Oncology/Facial Plastics/Reconstruction Simulation Models
A total of 16 oncology/facial plastics/reconstructive simulation models were identified (Table 2). These models consisted of 5 synthetic, 1 computer-based, 10 animal cadaver, and 2 hybrid models. Of the 16 simulation models, 4 were manufactured by 3D-printing (25%). Animal cadaver models were the most common type of surgical simulation platform. Chicken cadaver parts remained the most widely reported simulation model for microvascular anastomosis training in otolaryngology literature.





Rhinology

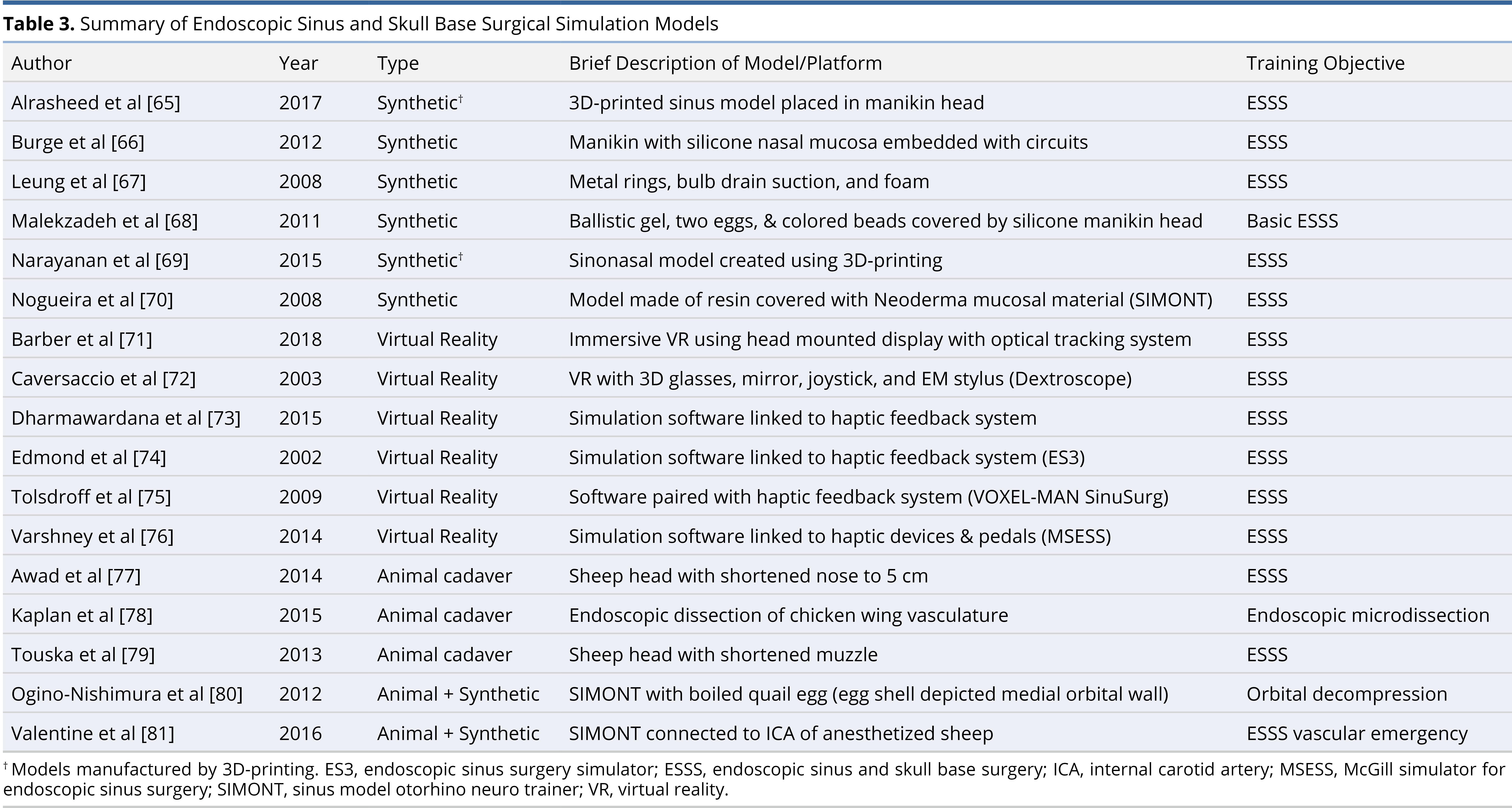

A total of 17 rhinology surgical simulation models were identified in our systematic review (Table 3). These models consisted of 6 synthetic, 6 computer-based, 5 animal cadaver, and 2 hybrid models. Of these 17 models, 14 articles described simulation models aimed at enhancing overall skills required for Endoscopic Sinus and Skull Base Surgery (ESSS) (88%). Only 3 out of 17 simulation models were designed for specific endoscopic tasks (12%), and only 2 out of 17 models were manufactured by 3D-printing (11.76%).





Otology
A total of 37 neuro-otologic simulation models were identified (Table 4). These models consisted of 21 synthetic, 12 computer-based, 2 animal cadaver, and 2 human cadaver models. All computer-based models utilized virtual reality (VR) technology except for one web-based otoscopy simulator aimed for otoscopic examination described by Wickens et al. [11]. Of these 37 models, 13 were intended for temporal bone drilling (35%), 11 were aimed for ventilation tube insertion (30%), and others included a variety of other ear surgical procedures. Only 3 out of 37 simulation models were manufactured by 3D-printing (8.11%).





Discussion

The implicit appeal of using simulation platforms in training is that mistakes on a simulation platform have no real-world consequences other than to serve as a marker of different degrees of task achievement [12]. Perhaps the best example of the successful use of simulation in training is that of the flight simulator created by Edward Link in 1929 to train novice pilots [13]. In time, simulation-based training has grown to be the industry standard in avionics and is currently used for a variety of reasons from the training of novice pilots to flight testing of new aircraft systems [12].

The parallels to the use of simulation in surgical training are striking. With the increasing awareness of ethical concerns, complexity of surgical procedures, healthcare costs, and clinical governance, surgical trainees are faced with new-age hurdles to achieve proficiency and competency within the confines of a structured timeframe. Additionally, limited availability of time for teaching and learning due to work hour restrictions has led to a detachment from the traditional Halstedian dogma of "master and apprentice" [14]. Given that simulation provides a tool for aptitude testing,  early skills acquisition, and advanced skills training [12], the development and use of surgical simulation training models have more recently gained exponent popularity as demonstrated by Figure 2. In their cross-sectional survey-based study, Deutsch et al managed to investigate interest amidst 43 US otolaryngology residency programs in advancing simulation training, with 92.9% of respondents confirming the presence of a simulation center or program at their institution and 83.8% of respondents indicating interest in participating in multi-center simulation initiatives [15]. These findings are reflective of a transition in the core philosophy of surgical education.

Historically, human and animal cadaver models and live animal models provided the mainstay raw material for simulation activities. As noted by Musbahi et al, the authors agree that it remains difficult to surpass the ability of human and animal cadaver models to provide anatomic accuracy, tissue consistency, and surgical conditions [8]. However, the rapid expansion and development of manufacturing and computing technologies holds the promise of delivering a paradigm shift in surgical simulation education.

As shown by our results, an ever-increasing number of anatomically accurate, customized 3D-printed models are being created as this technology becomes more available, accessible, and user-friendly. We are inclined to agree with VanKoevering and Malloy [16] in that 3D-printing provides surgical educators a unique advantage by affording an opportunity to rapidly create complex head and neck anatomical models that can be utilized for procedural training. These 3D-printed models hold an advantage over computer-based platforms because they permit tactile sensation and the use of real instruments. Given that these factors are intrinsic components in psychomotor skills training, 3D-printed models hold a distinct advantage over computer-based simulation platforms [16].

In the last five years, the arena of surgical simulation has seen a sharp increase in VR simulation platforms [17]. With the advancement in digital 3D-visualization along with haptic sensory technology, VR simulation models are providing a more interactive experience than ever before. Our findings are in line with the findings of Arora et al in that VR simulators appear to be most commonly employed in the subspecialties of rhinology and otology [17].

Although prior review articles have attempted to provide a database of otolaryngologic simulation models, the recent rapid increase in the number of documented simulation models warranted an updated review of otolaryngology simulation models. To the best of our knowledge, our paper presents the most expansive database of otolaryngology-specific simulation models, such that we report a total of 104 simulation models compared to the 60 models reported by Javia et al. [118] and the 64 models reported by Musbahi et al [8].  Additionally, in contrast to works such as that of Bhutta et al. [119] and Chan et al. [120], our article discusses simulation models in all divisions of otolaryngology, rather than addressing simulation training in only a single otolaryngologic sub-specialty. Our article also serves as the first to describe otolaryngology-specific simulators under a dedicated Oncologic/Facial Plastics/Reconstruction category in addition to other more commonly described categories such as Airway/Laryngeal, Pediatric, Rhinology, and Otology.

Due to the vast and ever-growing number of documented simulation models, the systematic review performed may not have captured a comprehensive list of all available surgical simulators. Evaluation of quality and validity of individual simulation platforms was also not conducted given that this be beyond the scope of this paper. The data presented by the authors is instead intended to provide an expansive list that contains simulation options that would adequately suffice the breadth of otolaryngologic training for medical students and residents alike. Future projects can be geared towards the expansion and validity testing of this dynamic and constantly growing list, and utilize it to create a standard, uniform, cost-effective, and high-fidelity simulation curriculum that can be employed by otolaryngology training programs.

Conclusion

Current literature shows the availability of several otolaryngology-specific simulation models that have proven beneficial in otolaryngologic surgical training. Recent advancements in manufacturing and computing technologies are contributing to a paradigm shift in surgical simulation education. With the availability of these options, there exists the potential to establish a well-structured and standardized approach to simulation activities across otolaryngology training programs.

References

  1. Calman KC, Temple JG, Naysmith R, Cairncross RG, Bennett SJ. Reforming higher specialist training in the united kingdom--a step along the continuum of medical education. Med Educ 1999;33(1):28-33. [View Article]
  2. Malekzadeh S, Malloy KM, Chu EE, Tompkins J, Battista A, Deutsch ES. Orl emergencies boot camp: Using simulation to onboard residents. Laryngoscope 2011;121(10):2114-2121. [View Article]
  3. Zigmont JJ, Kappus LJ, Sudikoff SN. Theoretical foundations of learning through simulation. Semin Perinatol 2011;35(2):47-51. [View Article]
  4. Michelson JD, Manning L. Competency assessment in simulation-based procedural education. Am J Surg 2008;196(4):609-615. [View Article]
  5. McClusky DA, 3rd, Smith CD. Design and development of a surgical skills simulation curriculum. World J Surg 2008;32(2):171-181. [View Article]
  6. Sonnadara RR, Van Vliet A, Safir O, et al. Orthopedic boot camp: Examining the effectiveness of an intensive surgical skills course. Surgery 2011;149(6):745-749. [View Article]
  7. Sturm LP, Windsor JA, Cosman PH, Cregan P, Hewett PJ, Maddern GJ. A systematic review of skills transfer after surgical simulation training. Ann Surg 2008;248(2):166-179. [View Article]
  8. Musbahi O, Aydin A, Al Omran Y, Skilbeck CJ, Ahmed K. Current status of simulation in otolaryngology: A systematic review. J Surg Educ 2017;74(2):203-215. [View Article]
  9. Moher D, Liberati A, Tetzlaff J, Altman DG, Group P. Preferred reporting items for systematic reviews and meta-analyses: The prisma statement. Int J Surg 2010;8(5):336-341. [View Article]
  10. Ianacone DC, Gnadt BJ, Isaacson G. Ex vivo ovine model for head and neck surgical simulation. Am J Otolaryngol 2016;37(3):272-278. [View Article]
  11. Wickens B, Lewis J, Morris DP, Husein M, Ladak HM, Agrawal SK. Face and content validity of a novel, web-based otoscopy simulator for medical education. J Otolaryngol Head Neck Surg 2015;44(1):7. [View Article]
  12. Dawson S. Procedural simulation: A primer. Radiology 2006;241(1):17-25. [View Article]
  13. Abou-Elhamd KE, Al-Sultan AI, Rashad UM. Simulation in ent medical education. J Laryngol Otol 2010;124(3):237-241. [View Article]
  14. Wiet GJ, Stredney D, Wan D. Training and simulation in otolaryngology. Otolaryngol Clin North Am 2011;44(6):1333-1350, viii-ix. [View Article]
  15. Deutsch ES, Wiet GJ, Seidman M, Hussey HM, Malekzadeh S, Fried MP. Simulation activity in otolaryngology residencies. Otolaryngol Head Neck Surg 2015;153(2):193-201. [View Article]
  16. VanKoevering KK, Malloy KM. Emerging role of three-dimensional printing in simulation in otolaryngology. Otolaryngol Clin North Am 2017;50(5):947-958. [View Article]
  17. Arora A, Lau LY, Awad Z, Darzi A, Singh A, Tolley N. Virtual reality simulation training in otolaryngology. Int J Surg 2014;12(2):87-94. [View Article]
  18. Ainsworth TA, Kobler JB, Loan GJ, Burns JA. Simulation model for transcervical laryngeal injection providing real-time feedback. Ann Otol Rhinol Laryngol 2014;123(12):881-886. [View Article]
  19. Deutschmann MW, Yunker WK, Cho JJ, Andreassen M, Beveridge S, Bosch JD. Use of a low-fidelity simulator to improve trans-nasal fibre-optic flexible laryngoscopy in the clinical setting: A randomized, single-blinded, prospective study. J Otolaryngol Head Neck Surg 2013;42(1):35. [View Article]
  20. Doucet G, Ryan S, Bartellas M, Parsons M, Dubrowski A, Renouf T. Modelling and manufacturing of a 3d printed trachea for cricothyroidotomy simulation. Cureus 2017;9(8):e1575. [View Article]
  21. Fleming J, Kapoor K, Sevdalis N, Harries M. Validation of an operating room immersive microlaryngoscopy simulator. Laryngoscope 2012;122(5):1099-1103. [View Article]
  22. Gauger VT, Rooney D, Kovatch KJ, et al. A multidisciplinary international collaborative implementing low cost, high fidelity 3d printed airway models to enhance ethiopian anesthesia resident emergency cricothyroidotomy skills. Int J Pediatr Otorhinolaryngol 2018;114:124-128. [View Article]
  23. Giblett N, Hari C. Introducing a realistic and reusable quinsy simulator. J Laryngol Otol 2016;130(2):201-203. [View Article]
  24. Ha JF, Morrison RJ, Green GE, Zopf DA. Computer-aided design and 3-dimensional printing for costal cartilage simulation of airway graft carving. Otolaryngol Head Neck Surg 2017;156(6):1044-1047. [View Article]
  25. Hughes KE, Biffar D, Ahanonu EO, Cahir TM, Hamilton A, Sakles JC. Evaluation of an innovative bleeding cricothyrotomy model. Cureus 2018;10(9):e3327. [View Article]
  26. Jabbour N, Reihsen T, Sweet RM, Sidman JD. Psychomotor skills training in pediatric airway endoscopy simulation. Otolaryngol Head Neck Surg 2011;145(1):43-50. [View Article]
  27. Johnston DI, Selimi V, Chang A, Smith M. A low-cost alternative for nasolaryngoscopy simulation training equipment: A randomised controlled trial. J Laryngol Otol 2015;129(11):1101-1107. [View Article]
  28. Kavanagh KR, Cote V, Tsui Y, Kudernatsch S, Peterson DR, Valdez TA. Pediatric laryngeal simulator using 3d printed models: A novel technique. Laryngoscope 2017;127(4):E132-E137. [View Article]
  29. Melchiors J, Todsen T, Nilsson P, et al. Self-directed simulation-based training of emergency cricothyroidotomy: A route to lifesaving skills. Eur Arch Otorhinolaryngol 2016;273(12):4623-4628. [View Article]
  30. Ng V, Plitt J, Biffar D. Development of a novel ultrasound-guided peritonsillar abscess model for simulation training. West J Emerg Med 2018;19(1):172-176. [View Article]
  31. Ross SK, Jaiswal V, Thomas S. Re: Yorick's skull model for tonsillectomy tie training. Clin Otolaryngol 2008;33(6):630-631. [View Article]
  32. Schwartz MA, Kavanagh KR, Frampton SJ, Bruce IA, Valdez TA. Using simulators to teach pediatric airway procedures in an international setting. Int J Pediatr Otorhinolaryngol 2018;104:178-181. [View Article]
  33. Washington CH, Tyler FJ, Davis J, et al. Trauma training course: Innovative teaching models and methods for training health workers in active conflict zones of eastern myanmar. Int J Emerg Med 2014;7(1):46. [View Article]
  34. Wiebracht ND, Giliberto JP, Myer Ct, Casper K, Johnson KE. Pilot testing of a novel surgical simulator for endoscopic zenker's diverticulotomy. Laryngoscope 2017;127(3):592-596. [View Article]
  35. Zambricki EA, Bergeron JL, DiRenzo EE, Sung CK. Phonomicrosurgery simulation: A low-cost teaching model using easily accessible materials. Laryngoscope 2016;126(11):2528-2533. [View Article]
  36. Demirel D, Yu A, Halic T, et al. Virtual airway skills trainer (vast) simulator. Stud Health Technol Inform 2016;220:91-97. [View Article]
  37. Liu A, Bhasin Y, Bowyer M. A haptic-enabled simulator for cricothyroidotomy. Stud Health Technol Inform 2005;111:308-313. [View Article]
  38. Campbell DM, Barozzino T, Farrugia M, Sgro M. High-fidelity simulation in neonatal resuscitation. Paediatr Child Health 2009;14(1):19-23. [View Article]
  39. Hesselfeldt R, Kristensen MS, Rasmussen LS. Evaluation of the airway of the simman full-scale patient simulator. Acta Anaesthesiol Scand 2005;49(9):1339-1345. [View Article]
  40. Isaacson G, Ianacone DC, Wolfson MR. Ex vivo ovine model for pediatric flexible endoscopy training. Int J Pediatr Otorhinolaryngol 2015;79(12):2196-2199. [View Article]
  41. Isaacson G, Ianacone DC, Soliman AM. Ex vivo ovine model for suspension microlaryngoscopy training. J Laryngol Otol 2016;130(10):939-942. [View Article]
  42. Netto FA, Zacharias P, Cipriani RF, Constantino Mde M, Cardoso M, Pereira RA. A porcine model for teaching surgical cricothyridootomy. Rev Col Bras Cir 2015;42(3):193-196. [View Article]
  43. Ram B, Oluwole M, Blair RL, Mountain R, Dunkley P, White PS. Surgical simulation: An animal tissue model for training in therapeutic and diagnostic bronchoscopy. J Laryngol Otol 1999;113(2):149-151. [View Article]
  44. Soliman AMS, Ianacone DC, Isaacson GC. Ex vivo ovine model for teaching open laryngotracheal surgery. World J Otorhinolaryngol Head Neck Surg 2018;4(2):140-144. [View Article]
  45. Al-Ramahi J, Luo H, Fang R, Chou A, Jiang J, Kille T. Development of an innovative 3d printed rigid bronchoscopy training model. Ann Otol Rhinol Laryngol 2016;125(12):965-969. [View Article]
  46. King W, Teare J, Vandrevala T, Cartwright S, Mohammed KB, Patel B. Evaluation of a novel surgicric(r) cricothyroidotomy device for emergency tracheal access in a porcine model. Anaesthesia 2016;71(2):177-184. [View Article]
  47. Aboud ET, Aboud G, Aboud T. "Live cadavers" for practicing airway management. Mil Med 2015;180(3 Suppl):165-170. [View Article]
  48. Demirel D, Butler KL, Halic T, et al. A hierarchical task analysis of cricothyroidotomy procedure for a virtual airway skills trainer simulator. Am J Surg 2016;212(3):475-484. [View Article]
  49. Redman TT, Ross EM. A novel expeditionary perfused cadaver model for trauma training in the out-of-hospital setting. J Emerg Med 2018;55(3):383-389. [View Article]
  50. van Emden MW, Geurts JJ, Schober P, Schwarte LA. Comparison of a novel cadaver model (fix for life) with the formalin-fixed cadaver and manikin model for suitability and realism in airway management training. Anesth Analg 2018;127(4):914-919. [View Article]
  51. Allak A, Liu YE, Oliynyk MS, Weng KH, Jameson MJ, Shonka DC, Jr. Development and evaluation of a rigid esophagoscopy simulator for residency training. Laryngoscope 2016;126(3):616-619. [View Article]
  52. Okamoto T, Hirota Y, Kimura Y, Senda E, Ueda K. 3d separable 2-layered elastic models of the face for surgical planning of local flaps. Plast Reconstr Surg Glob Open 2018;6(7):e1857. [View Article]
  53. Sillitoe AT, Platt A. The z-plasty simulator. Ann R Coll Surg Engl 2004;86(4):304-305. [View Article]
  54. Taylor SR, Chang CW. Gelatin facial skin simulator for cutaneous reconstruction. Otolaryngol Head Neck Surg 2016;154(2):279-281. [View Article]
  55. Xu JJ, Fung K, Glicksman JT, Brandt MG, Campbell G. Development of a tissue-mimicking neck model for medical education. J Otolaryngol Head Neck Surg 2012;41(2):145-151. [View Article]
  56. Walliczek-Dworschak U, Schmitt M, Dworschak P, et al. The effect of different training exercises on the performance outcome on the da vinci skills simulator. Surg Endosc 2017;31(6):2397-2405. [View Article]
  57. Hino A. Training in microvascular surgery using a chicken wing artery. Neurosurgery 2003;52(6):1495-1498. [View Article]
  58. Barber SR, Kozin ED, Naunheim MR, Sethi R, Remenschneider AK, Deschler DG. 3d-printed tracheoesophageal puncture and prosthesis placement simulator. Am J Otolaryngol 2018;39(1):37-40. [View Article]
  59. Chark D, Oliaei S, Manuel C, Wong BJ. Porcine cartilage model for simulation of nasal tip aesthetics and mechanics. Aesthet Surg J 2011;31(5):501-505. [View Article]
  60. Curry M, Malpani A, Li R, et al. Objective assessment in residency-based training for transoral robotic surgery. Laryngoscope 2012;122(10):2184-2192. [View Article]
  61. Isaacson DS, Edmonds PR, Isaacson G. The galliform (turkey thigh) model for resident training in facial plastic surgery. Laryngoscope 2014;124(4):866-868. [View Article]
  62. Khalil PN, Siebeck M, Mutschler W, Kanz KG. The use of chicken legs for teaching wound closure skills. European Journal of Medical Research 2009;14(10):459. [View Article]
  63. Pafitanis G, Serrar Y, Raveendran M, Ghanem A, Myers S. The chicken thigh adductor profundus free muscle flap: A novel validated non-living microsurgery simulation training model. Arch Plast Surg 2017;44(4):293-300. [View Article]
  64. Schoeff S, Hernandez B, Robinson DJ, Jameson MJ, Shonka DC, Jr. Microvascular anastomosis simulation using a chicken thigh model: Interval versus massed training. Laryngoscope 2017;127(11):2490-2494. [View Article]
  65. Alrasheed AS, Nguyen LHP, Mongeau L, Funnell WRJ, Tewfik MA. Development and validation of a 3d-printed model of the ostiomeatal complex and frontal sinus for endoscopic sinus surgery training. Int Forum Allergy Rhinol 2017;7(8):837-841. [View Article]
  66. Burge SD, Bunegin L, Weitzel EK, McMains KC. The validation of an endoscopic sinus surgery skills training model: A pilot study. Am J Rhinol Allergy 2012;26(5):409-413. [View Article]
  67. Leung RM, Leung J, Vescan A, Dubrowski A, Witterick I. Construct validation of a low-fidelity endoscopic sinus surgery simulator. Am J Rhinol 2008;22(6):642-648. [View Article]
  68. Malekzadeh S, Pfisterer MJ, Wilson B, Na H, Steehler MK. A novel low-cost sinus surgery task trainer. Otolaryngol Head Neck Surg 2011;145(4):530-533. [View Article]
  69. Narayanan V, Narayanan P, Rajagopalan R, et al. Endoscopic skull base training using 3d printed models with pre-existing pathology. Eur Arch Otorhinolaryngol 2015;272(3):753-757. [View Article]
  70. Nogueira JF, Stamm AC, Lyra M, Balieiro FO, Leao FS. Building a real endoscopic sinus and skull-base surgery simulator. Otolaryngol Head Neck Surg 2008;139(5):727-728. [View Article]
  71. Barber SR, Jain S, Son YJ, Chang EH. Virtual functional endoscopic sinus surgery simulation with 3d-printed models for mixed-reality nasal endoscopy. Otolaryngol Head Neck Surg 2018;159(5):933-937. [View Article]
  72. Caversaccio M, Eichenberger A, Häusler R. Virtual simulator as a training tool for endonasal surgery. American Journal of Rhinology 2003;17(5):283-290. [View Article]
  73. Dharmawardana N, Ruthenbeck G, Woods C, et al. Validation of virtual-reality-based simulations for endoscopic sinus surgery. Clin Otolaryngol 2015;40(6):569-579. [View Article]
  74. Edmond CV, Jr. Impact of the endoscopic sinus surgical simulator on operating room performance. Laryngoscope 2002;112(7 Pt 1):1148-1158. [View Article]
  75. Tolsdorff B, Pommert A, Hohne KH, et al. Virtual reality: A new paranasal sinus surgery simulator. Laryngoscope 2010;120(2):420-426. [View Article]
  76. Varshney R, Frenkiel S, Nguyen LH, et al. Development of the mcgill simulator for endoscopic sinus surgery: A new high-fidelity virtual reality simulator for endoscopic sinus surgery. Am J Rhinol Allergy 2014;28(4):330-334. [View Article]
  77. Awad Z, Touska P, Arora A, Ziprin P, Darzi A, Tolley NS. Face and content validity of sheep heads in endoscopic rhinology training. Int Forum Allergy Rhinol 2014;4(10):851-858. [View Article]
  78. Kaplan DJ, Vaz-Guimaraes F, Fernandez-Miranda JC, Snyderman CH. Validation of a chicken wing training model for endoscopic microsurgical dissection. Laryngoscope 2015;125(3):571-576. [View Article]
  79. Touska P, Awad Z, Tolley NS. Suitability of the ovine model for simulation training in rhinology. Laryngoscope 2013;123(7):1598-1601. [View Article]
  80. Ogino-Nishimura E, Nakagawa T, Sakamoto T, Ito J. An endoscopic endonasal surgery training model using quail eggs. Laryngoscope 2012;122(10):2154-2157. [View Article]
  81. Valentine R, Padhye V, Wormald PJ. Simulation training for vascular emergencies in endoscopic sinus and skull base surgery. Otolaryngol Clin North Am 2016;49(3):877-887. [View Article]
  82. Awad Z, Ahmed S, Taghi AS, et al. Feasibility of a synthetic temporal bone for training in mastoidectomy: Face, content, and concurrent validity. Otol Neurotol 2014;35(10):1813-1818. [View Article]
  83. Bakhos D, Velut S, Robier A, Al zahrani M, Lescanne E. Three-dimensional modeling of the temporal bone for surgical training. Otol Neurotol 2010;31(2):328-334. [View Article]
  84. Barber SR, Kozin ED, Dedmon M, et al. 3d-printed pediatric endoscopic ear surgery simulator for surgical training. Int J Pediatr Otorhinolaryngol 2016;90:113-118. [View Article]
  85. Campisi P, Tirado Y, Chadha NK, Forte V. Otoscopy simulation: A new paradigm in undergraduate medical education. The Laryngoscope 2011;121(S5):S246. [View Article]
  86. Carr ER, Benjamin E. 'Surgical skills box': A new training aid for surgical trainees. J Laryngol Otol 2006;120(2):133-134. [View Article]
  87. Duijvestein M, Borgstein J. The bradford grommet trainer. Clin Otolaryngol 2006;31(2):163. [View Article]
  88. Hochman JB, Kraut J, Kazmerik K, Unger BJ. Generation of a 3d printed temporal bone model with internal fidelity and validation of the mechanical construct. Otolaryngol Head Neck Surg 2014;150(3):448-454. [View Article]
  89. Hong P, Webb AN, Corsten G, et al. An anatomically sound surgical simulation model for myringotomy and tympanostomy tube insertion. Int J Pediatr Otorhinolaryngol 2014;78(3):522-529. [View Article]
  90. Jesudason WV, Smith I. How we do it: The bradford grommet trainer: A model for training in myringotomy and grommet insertion. Clin Otolaryngol 2005;30(4):371-373. [View Article]
  91. Leong A, Kundu S, Martinez-Devesa P, Aldren C. Artificial ear: A training tool for grommet insertion and manual dexterity. ORL J Otorhinolaryngol Relat Spec 2006;68(2):115-117. [View Article]
  92. Luu K, Straatman L, Nakku D, Westerberg B, Carter N, Clark M. Evaluation of a low-fidelity ear surgery simulator in a low-resource setting. J Laryngol Otol 2017;131(11):1010-1016. [View Article]
  93. Malekzadeh S, Hanna G, Wilson B, Pehlivanova M, Milmoe G. A model for training and evaluation of myringotomy and tube placement skills. Laryngoscope 2011;121(7):1410-1415. [View Article]
  94. Mathews SB, Hetzler DG, Hilsinger RL, Jr. Incus and stapes footplate simulator. Laryngoscope 1997;107(12 Pt 1):1614-1616. [View Article]
  95. Morris E, Kesser BW, Peirce-Cottler S, Keeley M. Development and validation of a novel ear simulator to teach pneumatic otoscopy. Simul Healthc 2012;7(1):22-26. [View Article]
  96. Okada DM, Sousa AMAd, Huertas RdA, Suzuki FA. Surgical simulator for temporal bone dissection training. Brazilian Journal of Otorhinolaryngology 2010;76(5):575-578. [View Article]
  97. Owa AO, Gbejuade HO, Giddings C. A middle-ear simulator for practicing prosthesis placement for otosclerosis surgery using ward-based materials. J Laryngol Otol 2003;117(6):490-492. [View Article]
  98. Pichichero ME, Poole MD. Assessing diagnostic accuracy and tympanocentesis skills in the management of otitis media. Arch Pediatr Adolesc Med 2001;155(10):1137-1142. [View Article]
  99. Singh PK, De M, Vaughan-Jones R. A model for training in grommet insertion. Ann R Coll Surg Engl 2005;87(4):287-288. [View Article]
  100. Torgerson C, Brydges R, Chen J, Dubrowski A. Low fidelity simulation of temporal bone drilling leads to improved but suboptimal outcomes. Stud Health Technol Inform 2007;125:470-472. [View Article]
  101. Volsky PG, Hughley BB, Peirce SM, Kesser BW. Construct validity of a simulator for myringotomy with ventilation tube insertion. Otolaryngol Head Neck Surg 2009;141(5):603-608 e601. [View Article]
  102. Walker T, Duvvi S, Kumar BN. The wigan grommet trainer. Clin Otolaryngol 2006;31(4):349-350. [View Article]
  103. Arora A, Khemani S, Tolley N, et al. Face and content validation of a virtual reality temporal bone simulator. Otolaryngol Head Neck Surg 2012;146(3):497-503. [View Article]
  104. Arora A, Swords C, Khemani S, et al. Virtual reality case-specific rehearsal in temporal bone surgery: A preliminary evaluation. Int J Surg 2014;12(2):141-145. [View Article]
  105. Fang TY, Wang PC, Liu CH, Su MC, Yeh SC. Evaluation of a haptics-based virtual reality temporal bone simulator for anatomy and surgery training. Comput Methods Programs Biomed 2014;113(2):674-681. [View Article]
  106. Ho AK, Alsaffar H, Doyle PC, Ladak HM, Agrawal SK. Virtual reality myringotomy simulation with real-time deformation: Development and validity testing. Laryngoscope 2012;122(8):1844-1851. [View Article]
  107. Huang C, Cheng H, Bureau Y, Agrawal SK, Ladak HM. Face and content validity of a virtual-reality simulator for myringotomy with tube placement. J Otolaryngol Head Neck Surg 2015;44(1):40. [View Article]
  108. O'Leary SJ, Hutchins MA, Stevenson DR, et al. Validation of a networked virtual reality simulation of temporal bone surgery. Laryngoscope 2008;118(6):1040-1046. [View Article]
  109. Sorensen MS, Mosegaard J, Trier P. The visible ear simulator: A public pc application for gpu-accelerated haptic 3d simulation of ear surgery based on the visible ear data. Otol Neurotol 2009;30(4):484-487. [View Article]
  110. Sowerby LJ, Rehal G, Husein M, Doyle PC, Agrawal S, Ladak HM. Development and face validity testing of a three-dimensional myringotomy simulator with haptic feedback. J Otolaryngol Head Neck Surg 2010;39(2):122-129. [View Article]
  111. Wheeler B, Doyle PC, Chandarana S, Agrawal S, Husein M, Ladak HM. Interactive computer-based simulator for training in blade navigation and targeting in myringotomy. Comput Methods Programs Biomed 2010;98(2):130-139. [View Article]
  112. Wiet GJ, Stredney D, Kerwin T, et al. Virtual temporal bone dissection system: Osu virtual temporal bone system: Development and testing. Laryngoscope 2012;122 Suppl 1(S1):S1-12. [View Article]
  113. Zhao YC, Kennedy G, Yukawa K, Pyman B, O'Leary S. Can virtual reality simulator be used as a training aid to improve cadaver temporal bone dissection? Results of a randomized blinded control trial. Laryngoscope 2011;121(4):831-837. [View Article]
  114. Garcia LdB, Andrade JSCd, Testa JRG. Anatomical study of the pigs temporal bone by microdissection. Acta Cirurgica Brasileira 2014;29(suppl 3):77-80. [View Article]
  115. Gocer C, Eryilmaz A, Genc U, Dagli M, Karabulut H, Iriz A. An alternative model for stapedectomy training in residency program: Sheep cadaver ear. Eur Arch Otorhinolaryngol 2007;264(12):1409-1412. [View Article]
  116. Awad Z, Tornari C, Ahmed S, Tolley NS. Construct validity of cadaveric temporal bones for training and assessment in mastoidectomy. Laryngoscope 2015;125(10):2376-2381. [View Article]
  117. Mowry SE, Hansen MR. Resident participation in cadaveric temporal bone dissection correlates with improved performance on a standardized skill assessment instrument. Otol Neurotol 2014;35(1):77-83. [View Article]
  118. Javia L, Deutsch ES. A systematic review of simulators in otolaryngology. Otolaryngol Head Neck Surg 2012;147(6):999-1011. [View Article]
  119. Bhutta MF. A review of simulation platforms in surgery of the temporal bone. Clin Otolaryngol 2016;41(5):539-545. [View Article]
  120. Chan M, Carrie S. Training and assessment in functional endoscopic sinus surgery. J Laryngol Otol 2018;132(2):133-137. [View Article]

Editorial Information

Publication History

Received date: March 07, 2019
Accepted date: March 20, 2019
Published date: April 03, 2019

Disclosure

Podium presentation at 2019 Triological Combined Sections Meeting, Coronado, CA, Jan 24-26, 2019.

Ethics Approval and Consent to Participate

The study is in accordance with the ethical standards of the 1964 Helsinki declaration and its later amendments or comparable ethical standards.

Funding

The study did not receive any specific grant from funding agencies in the public, commercial, or not-for-profit sectors.

Conflict of Interest

The authors report no financial or other conflict of interest relevant to this article, which is the intellectual property of the authors.

Copyright

© 2019 The Authors. This is an open-access article distributed under the terms of the Creative Commons Attribution 4.0 International License (CC-BY).

Department of Otolaryngology-Head and Neck Surgery, Indiana University School of Medicine, Indianapolis, Indiana, USA
Richard M. Fairbanks School of Public Health, Indiana University Purdue University Indianapolis, Indianapolis, Indiana, USA
Department of Otolaryngology-Head and Neck Surgery, Indiana University School of Medicine, Indianapolis, Indiana, USA
Department of Otolaryngology-Head and Neck Surgery, Indiana University School of Medicine, Indianapolis, Indiana, USA
Department of Otolaryngology-Head and Neck Surgery, Indiana University School of Medicine, Indianapolis, Indiana, USA
Department of Otolaryngology-Head and Neck Surgery, Indiana University School of Medicine, Indianapolis, Indiana, USA

Address: Suite 400, Fesler Hall, 1130 West Michigan Street, Indianapolis, Indiana 46202, Indiana, USA
Table 1.jpg
Table 1. Summary of Airway/Laryngeal Surgical Simulation Models
Table 2.jpg
Table 2. Summary of Oncology/Facial Plastics/Reconstructive Surgical Simulation Models
Table 3.jpg
Table 3. Summary of Endoscopic Sinus and Skull Base Surgical Simulation Models
Table 4.jpg
Table 4. Summary of Otology Surgical Simulation Models
Figure 1.jpg
Figure 1. Systematic review flowchart based on the PRISMA methodology. PRISMA, preferred reporting items for systematic reviews and meta-analyses.
Figure 2.png
Figure 2. Number of simulation models described in literature over time.

Reviewer 1 Comments

  1. This is a nice review of the literature in surgical simulation training in otolaryngology. Nevertheless, it may be vague regarding using the term “trends” as the summary measure of effect. The authors are suggested to clarify the specific issue in this review. If the intended summary measure of effect differed from that used for each outcome in each study included, it needs to be pointed out in a Limitations section and explain the rationale that the term “trend” is used.
    ResponseThe authors agree with this comment and the term trend has now been eliminated from the manuscript and the writing has been updated accordingly. The key objectives of our systematic review are to present an expansive list of otolaryngology-specific surgical simulation training models as described in Otolaryngology literature and to evaluate recent advances in simulation training in Otolaryngology. To the best of our knowledge, the data we present essentially serves as the most expansive database of otolaryngology-specific simulation models currently available. Our paper also discusses the impact that advancements in manufacturing and computing technologies are having on surgical simulation training.

  2. The authors are suggested to describe the criteria to assess the methodological quality of the eligible studies. Alternatively, the authors may clarify the difficulty in specifying the criteria in a Limitations section.
    ResponseThe authors appreciate this comment. The testing of quality and validity (face, content, construct, and concurrent) of the described simulation platforms holds the potential for a separate academic article. At this juncture, the authors collectively believe that this is beyond the scope of what we are presenting in this paper. The notion of quality and validity testing is encouraged as future endeavor in the final sentence of our discussion paragraph which reads “Future projects can be geared towards the expansion and validity testing of this dynamic and constantly growing list, and utilize it to create a standard, uniform, cost-effective, and high-fidelity simulation curriculum that can be employed by otolaryngology training programs.”

  3. It would be better to mention the number of studies that were excluded for each reason. For instance, article not obtainable (n = 2).
    ResponseThe authors agree with this comment. Our exclusion criteria have been explicitly listed in the methods section. Figure 1 has now been updated as per the reviewer’s recommendation.

  4. Authors should include a discussion on applying the current research to yield findings of clinical significance.
    ResponseThe authors appreciate this comment. The introduction section sheds light on the value of simulation in clinical training. The specific segment reads “Given that surgical simulation training (SST) engages the two most important tenets of adult learning by permitting moderated practical experience in the setting of guided reflection, it holds great potential in the training of otolaryngologists [3]. Although surgical simulation activities can be resource intensive [4,5], the availability of an arena for deliberate practice in a risk-free, low stress environment is an effective way to acquire skills specific to the practice of a surgical subspecialty [6].” Additionally, the authors also emphasize (in the last paragraph of the Discussion section) the value of utilizing this paper “to create a standard, uniform, cost-effective, and high-fidelity simulation curriculum that can be employed by otolaryngology training programs”

Reviewer 2 Comments

  1. Research outcomes should be compared with those obtained in previous studies. For example, Javia et al published a systematic review of simulators in otolaryngology in 2012 (Otolaryngol Head Neck Surg. 2012 Dec;147(6):999-1011). Are there different findings or trends observed between the previous literature review and the current review?
    ResponseThe authors appreciate this comment. The paper referred to by the reviewer was evaluated by the authors, in addition to other similar papers (Musbahi et al, Chan et al, and Bhutta et al.). This is now reflected in the Discussion section. Given the rapid increase in popularity of simulation training and the recent advancement of computer and manufacturing technologies, our paper stands as the most recent and expansive database of otolaryngology-specific simulators, describing 35 more stimulators compared to the paper referenced by the reviewer (69 vs 104). This is not surprising to the authors, as our paper comes 7 years after the publication of the referenced paper. To the best of our knowledge, our paper is also the first to describe otolaryngology-specific simulators under a dedicated Oncologic/Facial Plastics/Reconstruction category in addition to other more commonly described categories (such as Airway/Laryngeal, Pediatric, Rhinology, and Otology).

  2. Validation criteria may not be mentioned in sufficient detail and even when fully described, validation criteria may be diverse. According to the literature review, was the validation criteria addressed in most of the studies reviewed?
    ResponseThe authors appreciate this comment. The testing of simulation model validities (face, content, construct, and concurrent) holds the potential for a separate article. The authors collectively believe that this is beyond the scope of what we are presenting in this paper. The notion of validity and quality testing is encouraged as future endeavor in the final sentence of our discussion paragraph which reads “Future projects can be geared towards the expansion and validity testing of this dynamic and constantly growing list, and utilize it to create a standard, uniform, cost-effective, and high-fidelity simulation curriculum that can be employed by otolaryngology training programs.”

  3. The abbreviation in Figure 2 should be defined, i.e., FPRS/Recon.
    ResponseThe abbreviation Oncologic/FPRS/Recon has now been changed to Oncologic/Facial Plastics/Reconstruction.

  4. A Conclusion section needs to be added.
    ResponseA conclusion section has now been added and reads “Conclusion”.

  5. Models and simulators were classified into the following categories: synthetic, digital, animal cadaver, and hybrid models. However, in the Introduction section, it is stated that on a broad scale, these simulation models can be categorized into synthetic bench models, computer-based models, animal models (tissue or live), and human cadaveric models, while a combination of any of these constitutes a hybrid model. It is confusing and these terms should be clarified in the Methods section.
    ResponseThe authors agree with this comment. The writing has been updated and aligned with the rest of the manuscript. The paragraph in the introduction section now reads “On a broad scale, these simulation models can be categorized into synthetic bench models, computer-based models (virtual reality or web-based), animal models (tissue or live), and human cadaveric models [8], while a combination of any of these constitutes a hybrid model.” Tables have also been re-arranged in accordance to these categories.
